THE CHECKFIRE 210-D AUTOMATIC DETECTION AND ACTUATION

Description

The CHECKFIRE 210-D Automatic Detection and Actuation
System provides supervised input/output circuits to activate
an ANSUL fire suppression system. Upon detecting a fire
condition, the interface control module activates the release
circuit, resulting in the discharge of an expellant gas cartridge,
initiating fire suppression system operation.

Green, amber, and/or red pulsing LEDs, and the internal sounder
notify operator of system status. The sounder only activates for
faults, isolate mode, and system release,

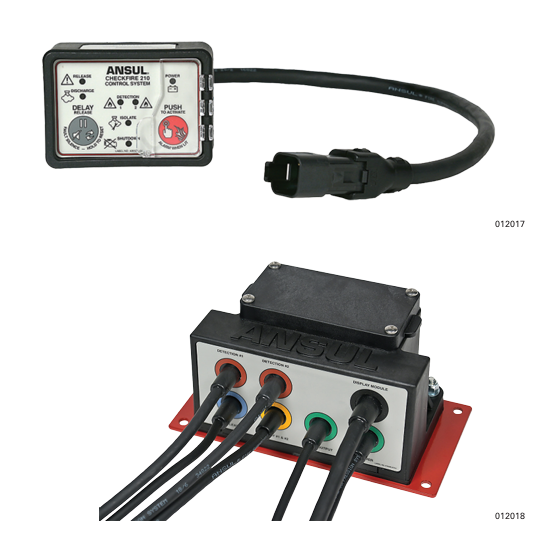

Operating components include the display module, interface
control module, linear detectors, electric manual actuators,
protracting actuation devices (PAD), electric-pneumatic
actuators, and cables for power, detection, and release
circuits. The entire system is electronics based for supervision,
communication, and control of system components.

Application

The CHECKFIRE 210-D Detection and Actuation System is
typically used with an ANSUL® A-101 or LVS Vehicle Fire
Suppression System for 24-hour protection of equipment. The
system is designed for vehicles and equipment in extreme
environmental and physical conditions.

Industries where vehicles use CHECKFIRE 210-D Systems

• Landfills
• Forestry
• Agriculture
• Waste disposal
• Construction = Mining
• Public transportation
• Public utilities

Features

• FM 5970 Approved, 2022 Edition Tested to meet or exceed
  vehicle equipment manufacturer’s specifications for
  environment, vibration and EMC profiles
• Supervised power, detection, release, and communication
  circuits
• System can be independently powered by utilizing either the
  primary power input or secondary power input.
  NOTE: Both primary and secondary power supplies must be utilized
  maintain FM 5970 approval.
• Two time delays programmable to 0, 5, 10 or 15 seconds
• “DELAY / Reset / Silence” button
• PUSH To Activate / Alarm When Lit” electric manual
  activation button and LED
• Minimum 75 dB internal sounder
• Dust and water tight connectors (IP68 rated)
• Manual programming button
• Computer programmable via mini-USB port
• Two analog detection circuits, detection circuit #2 may be programmed for pressure switch feedback
• Detection circuits are programmable for independent detection and release, cross-zone detection and release or
  detection only
• Auxiliary Power output available when external power is
  connected
• Two internal programmable SPDT Form “C” relays
  (6A @ 30 VDC resistive, 3A @ 30 VDC Inductive)
• Isolate function via Display Module
• Downloadable 4000+ Event History Log
